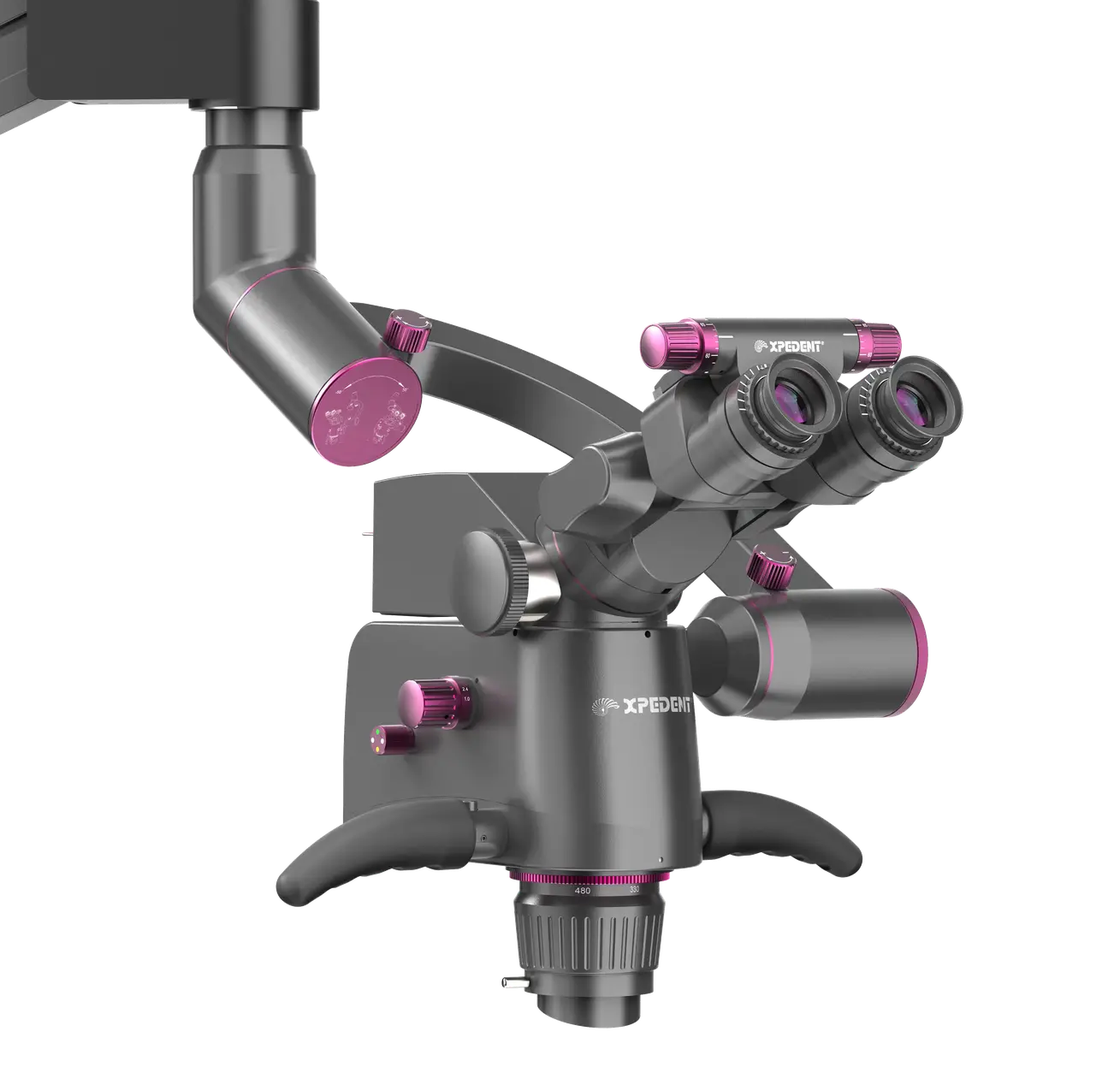

The OralOptix Prime CLS is the step up from stepped magnification. Instead of fixed gears, continuous zoom lets you move seamlessly through the magnification range and settle on exactly the view you want, without interrupting your workflow.

Integrated LED illumination delivers bright, natural colour rendering at up to 130,000 lux at 250mm, so tissue and restorative shades read accurately across the field. The 65,000-hour LED means no replacement bulbs, low power consumption and a long service life.

An extended working distance of 190 to 480mm gives you more room to work and more flexibility in how you position around the patient. The gas-spring counterbalanced arm, with a longer 1,860mm reach, makes repositioning effortless and holds exactly where you leave it.

Like the whole OralOptix range, the CLS is built to adapt, with a wide choice of eyepiece magnifications, focal lengths and mountings.

• Continuous-zoom magnification, 3.4x to 21.4x
• 12.5x eyepieces as standard; optional 10x, 16x or 20x
• Extended variable-working-distance objective lens, 190 to 480mm
• Integrated LED illumination, up to 130,000 lux at 250mm working distance
• 65,000-hour LED — no bulb replacement, reduced power consumption, durable construction
• Gas-spring counterbalanced arm with extended 1,860mm reach for smooth, fluid repositioning
• 0 to 220° inclinable binocular head
• PD adjusting knob
• Integrated orange and green filter
• Beam splitter for use with a digital camera or camcorder
• Optional 4K HDMI camera and high-definition interface for remote viewing and easy training
• Optional Smart LCD display and laser filter
• Wide choice of floor, base, ceiling or wall mountings
• CE / ISO 13485 certified

Every OralOptix Prime CLS is backed by local servicing and full technical support.

The microscope comes with a 2-year warranty as standard, extendable to 5 years for an additional cost. Servicing is handled locally, so maintenance and support are close at hand rather than routed overseas.
